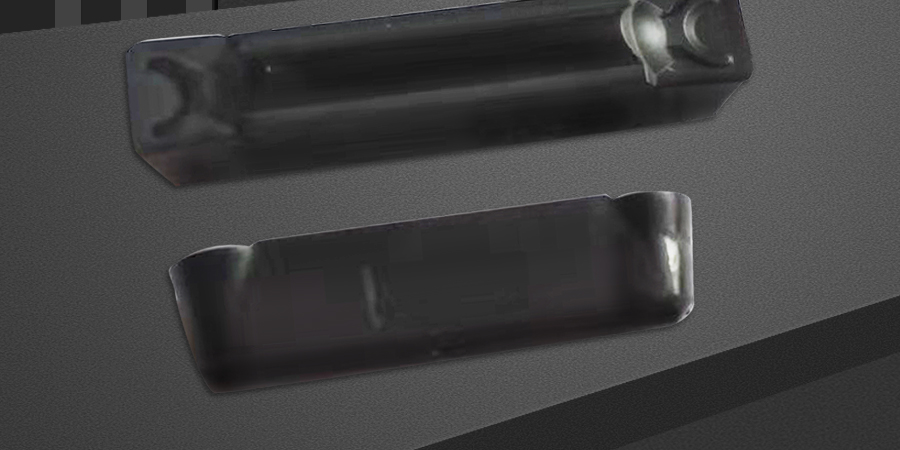

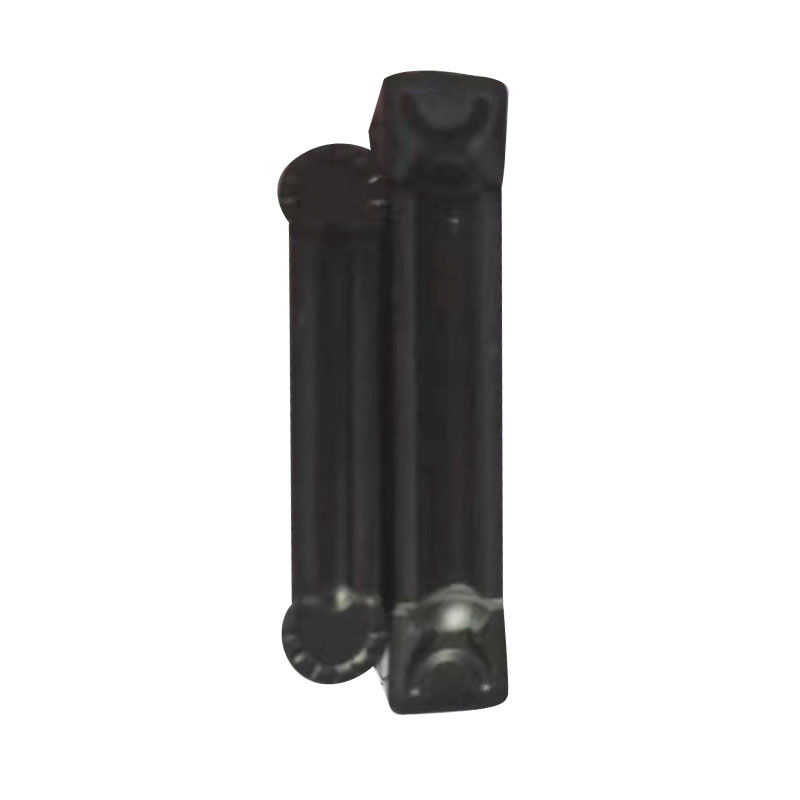

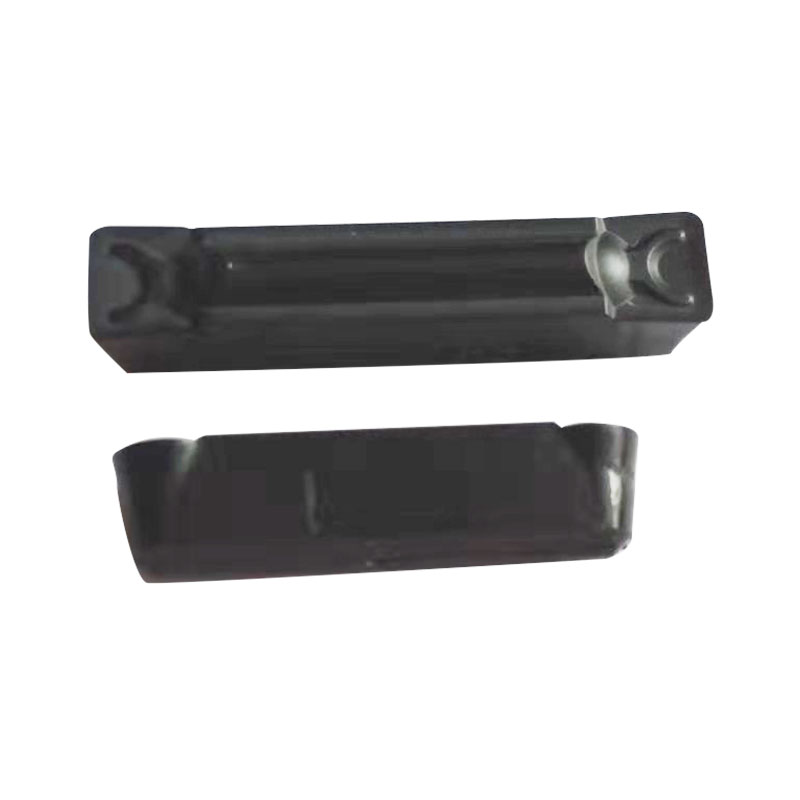

Use for Grooving Matching Cemented Carbide Inserts of CVD Coating A4g0305m03/ A4g0405m04/ A4r0300m03/ A4r0400m04

Description:

Item NO.:A4G0305M03/ A4G0405M04/ A4R0300M03/ A4R0400M04

Coating: CVD Coating

Application: CNC Lathe

Structure: Indexable  grooving inserts

Material: Cemented carbide

Feature: High Performance Cutting

Place of Origin: Hunan, China

Customized support: OEM

Description

1. Excellent wear resistance and breakage resistance
2. Professional inspection and high precision
3. High precision, easy replacement, general use

CVD Coated Cemented Carbide

GradeDescriptionEquivalentto ISO
YC1015MT-CVD coated, the substrate with exce lent wear resistance in com bination with MT-TiCN, fine grained AL2O3TiN multi-layer coating, which is suitable for finishing of steel.PO5~P15
YC1025MT-CVD coated, Cutting edge with good toughness in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for sem i-finishing of steel.P10~P25
YC1035MT-CVD coated, the substrate with exce lent toughness and plastic deformation resistance in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for roughness of steel.P20~P35
YC3025MT-CVD coated, the substrate with exce lent wear resistance in com bination with TiCN+AI2O3(thick)+TiN multi-layer coating, which is optimal for fin ishing and semi-finishing of stainless steel.M05~M15
YC3035MT-CVD coated, the substrate with special micro structure in com bination with TiCN+Al2O3(thick)+TiN multilayer coating, which is optimal for fin ishing an d roughing of stainless steeI.M10~M25
YC3045MT-CVD coated, the substrate with exce lent toughness in com bination with TiCN+AI2O3(thin)+TIN multi-layer coating, wh ich is optimal for sem i-finishing and roughing of stainless steel.M20~M35
YC2005MT-CVD coated, the super fine grain size substrate with excellent hardness in combination withAl2O3(extra thick) + TiCN(thick) coating, the smooth surface, which is suitable for turning and milling of grey cast iron at high speedK05~K15
YC2015MT-CVD coated, the substrate with exce lent hardness and stripping resistance in combination withAl203(thick) + TiCN(thick) coating, the smooth surface of the tools, which is su itable for turning and milling of cast iron at middle and high speed.K10~K30
YC2025MT-VD coated, the substrate with exce lent wear resistance and toughness in com bination withAl2O3(extra thick) + TiCN(thick) coating, which is suitable for the milling of cast iron(for example, nodular iron) at middle and high speed and interrupted turning.K20~K35

Dimension

TypeBreadth(mm)Nose Radius(mm)
A4G0305M033.000.4
A4G0305M044.000.8
A4G0305M055.000.8
A4G0600M066.000.8
A4R0300M033.001.5
A4R0400M044.002
A4R0500M055.002.5
A4R0600M066.003


Packing & Delivery

Our Services

✔ Pre-sales Service: 24hours online by WhatsApp/ Wechat
✔ Sales Service: Professional sales quotation and precision price for you
✔ After-sales Service: 1-3 days by the delivery time as usual
✔ Technical Support: 20 years engineer in the CNC area

FAQ

Q1: Are you a trading company or manufacturer
A1: We are a manufacturer of carbide inserts. Our factory located in Zhuzhou  City, Hunan Province. Welcome to visit our factory!
Q2: What is your minimum order requirement?
A2: OEM and customization are available. we accept the small trial order, big order will get a big discount. and try our best to service our customers.
Q3: What is the delivery time for production?
A3: We usually prepare rich stock for delivery upon payment, 30-35 days for items without stock.
Q4: Can you make Non-Standard items?
A4: We are specialized in inserts R&D, welcome specical items .
Q5: What about the package?
A5: We use plastic boxes to pack our products, and filled plastic is shockproof and transported in cartons. also It can make as you need and depend on the shapes of the product.
